NeoPRO : New mini vertical electrophoresis system

NeoPRO : New mini vertical electrophoresis system

Run 1 to 4 polyacrylamide gels in 35 minutes

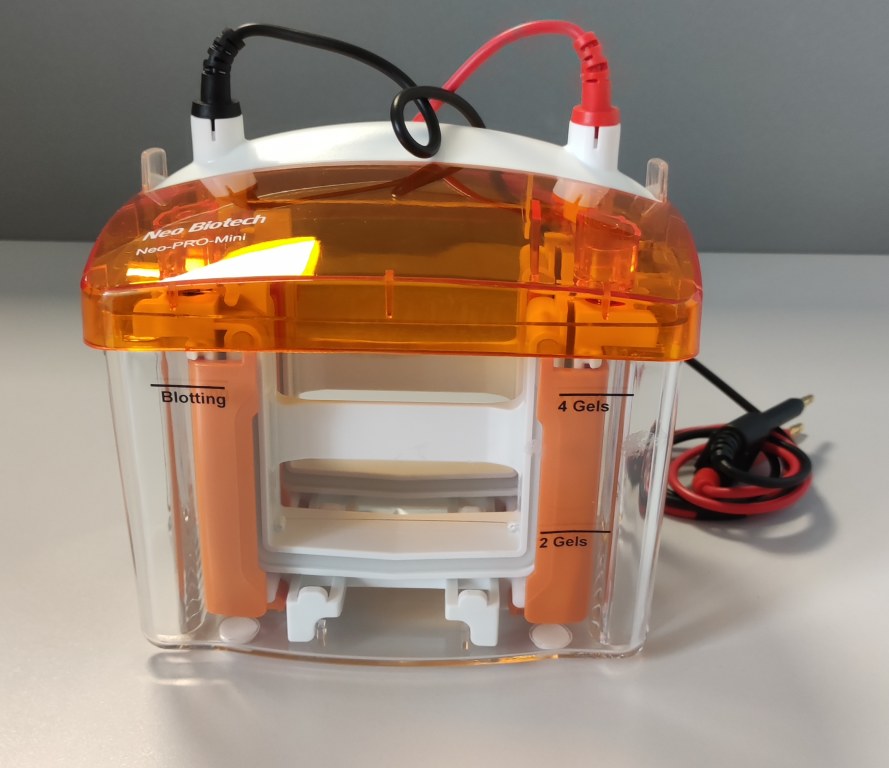

NeoPRO Mini Vertical Protein Electrophoresis System is used to run pre-casting gel and hand-casting gel, at most 4 pieces of gels are available simultaneously. It is compatible with 1-D and 2-D electrophoresis application. The gel-casting frame and spacer glass plate make the activity of hand-casting gel simple and avoid the leakage.


Features :
  • Filler strip is fixed to glass plate to avoid leakage of gel.
  • Gel-making kit ensures the accurate aligning.
  • Excellent leakproofness.
  • Special comb does not stop gel polymerization. Built-in kit isolates gel from air.
  • Thickness and well marked comb is readable.
  • Equipped with multi-functional gel scraper.
  • Specifications :

    Number of gels
    1-4
    Type of gels
    Precast and handcast gels
    Handcast gels
    Cast using NeoPRO mini spacer plates
    Gel size
    8.3 x 7.3 cm
    Glass plate size

    Short plate : 10.0 x 73 cm
    Spacer plate : 10.0 x 83 cm
    Comb specification
    1.0mm: 10, 15 wells; 0.75mm: 10, 15 wells; 1.5mm: 10, 15 wells
    Total buffer volume
    2 gels : 700 ml / 4 gels : 1000 ml

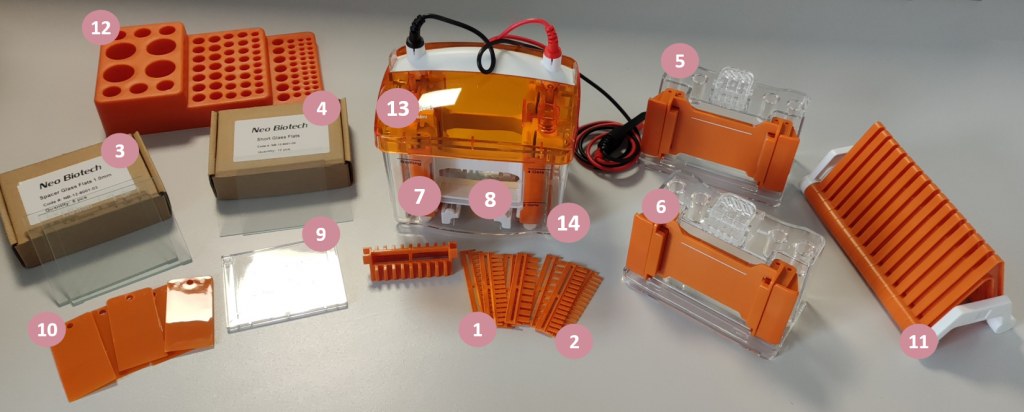

    The NeoPRO mini vertical protein electrophoresis system (NB-12-8001) included :



    Product code
    Description
    Qty
    1
    NB-12-8001-01
    Comb (1.0mm, 10 wells)
    5 units
    2
    NB-12-8001-02
    Comb (1.0mm, 15 wells)
    5 units
    3
    NB-12-8001-03
    Spacer glass plate (1.0mm)
    5 units
    4
    NB-12-8001-04
    Short Glass plate
    10 units
    5
    NB-12-8001-05
    Gel base
    4 units
    6
    NB-12-8001-06
    Gel casting frame
    4 units

    NB-12-8001-07
    Sealing gasket
    5 units
    7
    NB-12-8001-08
    Electrode Head electrophoresis core
    1 unit
    8
    NB-12-8001-09
    Mushroom Head Electrophoresis Core
    1 unit
    9
    NB-12-8001-10
    Buffer dam
    1 unit
    10
    NB-12-8001-11
    Gel shovel
    5 units
    11
    NB-12-8001-12
    Support for glass plate
    1 unit
    12
    NB-12-8001-13
    Multi-purpose support for centrifugal tube
    1 unit
    13
    NB-12-8001-14
    Upper lid (with cable)
    1 unit
    14
    NB-12-8001-15
    Low lid - cell bottom
    1 unit
